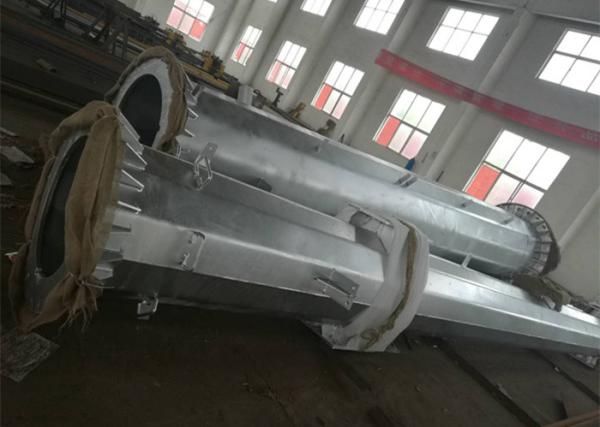

HDG Monopole Transmission Towers ,ASTM A 572 grade 50 Steel Tubular Tower
1. Production decription
LT steel are in the field of monopole transmission tower manufacturing since the year 2009.
Parameter as following:
| Height | From 10m to 100m or according to client’s requirement |
| Suit for | Electric Power Transmission monopole |
| Material | Normally Q235B/A36,Yeild Strength≥235MPa |
| Q345B/A572,Yeild Strength≥345MPa |
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 |
| Power Capacity | 10kV to 500kV |
| Tolerance of the dimension | According to client’s requirement |
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement |
| Joint of Poles | overlaaping or flange connection |
| Standard | ISO9001:2008 |
| Welding Standard | AWS(American Welding Society)D 1.1 |
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages |
| Packages | Packing with plastic paper or according to client’s requirement |
| Life Period | More than 30 years, it is according to installing environment |
| Delivery Time | 30days after receipt of 30% advance payment |
2. Production capacity
| production capacity per month | 3000 tons |
3.Technical support
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality Control
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
Catalogue of certificatge as followings :
5. Trial assembly
We usually has two ways of trial assembly: trial assembly before galvanzation and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2005,is a leading professional manufacturer in the field of transmission line towers (the voltage up to 500kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 60,000 tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be answered in time .
9. Product catalogue:
